F u l l A r c h i t e c t u r e P o r t f o l i o
MArch with Distincltion and BA(Hons) with 2:1 achieved
CDP Final Project (in full)
LJMU Dance & Drama building
2018
One aim for this project wasn't to just be a building to hold dance + drama students and teachers, I wanted anyone to feel like they could dance through the unusually shaped interior of the building, not just walk through it.
If you click on each strip they will enlarge, it may take a moment for images to load due to the high quality
The final images are at the end after the references.

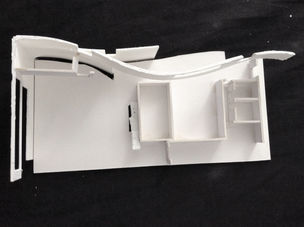

Physical model
Site and model in site
Facade
Levels of model
The CAD model was created on Revit, then I separated it up into layers, exported it to SketchUp to scale down and export as an STL file to be 3D printed.

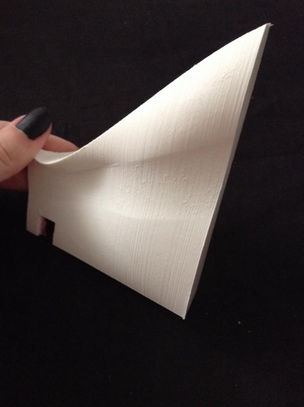

Would you dance through my parametric curved walkway?
​
A 2:1 was achieved for this project
